Deposit and Withdrawal simulation#

Simulation Details#

The XGateway Demo Environment offers an API to simulate a transaction processing and receive a transaction notification (callback).

The API ingests an invoice ID and forms a transactions with a callback based on the invoice data. It requires the prior created invoice to be either activated or finalised.

Supported Statuses#

• Invoice Statuses: active, completed, canceled
• Transaction Statuses: confirmed, failed

Supported Deposit Flows#

This endpoint enables the following scenarios:

• Creating a failed or confirmed transaction from an active invoice, which then triggers a callback.
• Creating a confirmed transaction from a canceled invoice (this is known as the "confirmed from failed" flow), which then triggers a callback.
• Resending a callback for an existing transaction. This is used when an invoice is already completed (for a confirmed transaction) or canceled (for a failed transaction).

Important Notes#

• Amount: When creating a new transaction from an active invoice, the amount specified in the API call is used. However, this amount is ignored when resending a callback for an invoice that already has a transaction linked to it.
• Crypto Payments: The "confirmed from failed" flow is not supported for Crypto payments.
• Fees: Any fees shown in the callback are generated randomly and do not reflect actual charges.

Testing Withdrawal Callback#

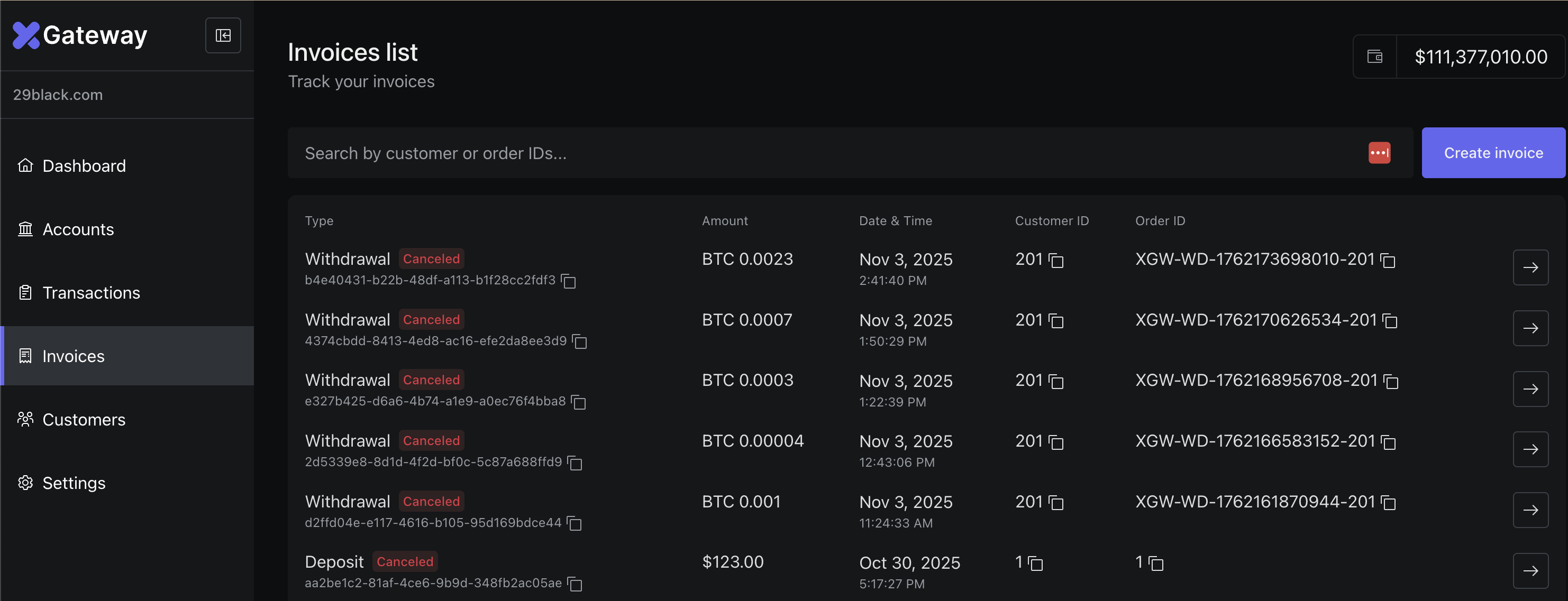

When a withdrawal request is created, the system also creates a linked invoice. The invoice can be seen in the Merchant Backoffice (Invoices tab). Use a corresponding invoice id to trigger a callback via the simulation API.

Simulation endpoint#
