# Alternative Payment Methods using Checkout {% hint style="warning" %} Please read [this](https://docs.xgateway.tech/miscellaneous/invoice-currencies) page before starting. The invoice creation API uses several parameters that need explanation. {% endhint %} XGateway supports deposits with preliminary creation of [invoices](https://docs.xgateway.tech/payment-flows#invoice) with a fixed exchange rate. This is the recommended integration form, which providers merchants with ready-made UI for deposits with crypto assets. ### Creating an invoice In order to create a Fixed Rate Invoice in the payment processing system, you need to make a `POST` request to the Invoice API endpoint.
URLs For tests use Demo env: For production:
The XGateway provides one [API endpoint](https://docs.xgateway.tech/integration-guides/advanced-features-of-invoice-creation), which automatically defines a corresponding payment method based on the input parameters provided by the merchant. Below are examples of a payload to create an invoice for various Alternative Payment Methods. {% hint style="success" %} The system will skip all XGateway intermediate pages and redirect the customer directly to the payment method **only if all required data is provided**. {% endhint %} {% hint style="warning" %} For Papara and Havale Bankpay the amount must be a multiple of 50 ( example: 150, 200, 250 TRY ). {% endhint %}
TRY deposit examples For Papara and Havale Bankpay the amount must be a multiple of 50 (example: 150, 200, 250 TRY etc.) Create an invoice: ``` { "amount": 150, "baseCurrency": "TRY", "displayCurrencies": "TRY", "paymentCurrency": "TRY", "customerId": "test-customer-id", "orderId": "test-order-id" } ``` Create and activate an invoice for Havale: Bankpay channel *Higher minimal deposit limits, payment method field should be set to "bankpay"* **(opens the payment method directly)**: ``` { "customerId": "test-try-customer", "orderId": "test-try-order", "baseCurrency": "TRY", "amount": 50, "paymentMethod": "bankpay", "paymentCurrency": "TRY", "customerFullName": "John Doe" } ``` Create and activate an invoice for Havale: IBAN channel *No limits on amount increments, paymentMethod field should be set to "iban", customerAccount to IBAN of the customer* **(opens the payment method directly)**: ``` { "customerId": "test-try-customer", "orderId": "test-try-order", "baseCurrency": "TRY", "amount": 50, "paymentMethod": "iban", "paymentCurrency": "TRY", "customerFullName": "John Doe", "customerEmail": "john@gmail.com", "customerAccount": "TR5100...585" } ``` Create and activate an invoice for Papara **(opens the payment method directly)**: ``` { "customerId": "test-try-customer", "orderId": "test-try-order", "baseCurrency": "TRY", "amount": 50, "paymentMethod": "papara", "paymentCurrency": "TRY", "customerFullName": "John Doe" } ``` Create and activate an invoice for Papel **(opens the payment method directly)**: ``` { "customerId": "test-try-customer", "orderId": "test-try-order", "baseCurrency": "TRY", "amount": 50, "paymentMethod": "papel", "paymentCurrency": "TRY", "customerFullName": "John Doe" } ``` Create and activate an invoice for Parolapara **(opens the payment method directly)**: ``` { "customerId": "test-try-customer", "orderId": "test-try-order", "baseCurrency": "TRY", "amount": 50, "paymentMethod": "parolapara", "paymentCurrency": "TRY", "customerFullName": "John Doe" } ``` {% hint style="warning" %} If you get a bad request response without exact information about the erroneous field, please check the syntax of the request. {% endhint %}
INR Peer to Peer deposits Create an invoice: ``` { "orderId": "order-test-prod", "customerId": "test-prod2025", "baseCurrency": "INR", "amount": 1000 } ``` Create and activate an invoice for INR **(opens the payment method directly)**: ``` { "orderId": "order-test-prod", "customerId": "test-prod2025", "baseCurrency": "INR", "amount": 1000, "customerFirstName": "John", "customerLastName": "Doe", "paymentCurrency": "INR", "customerEmail": "john.doe@gmail.com", "customerCountry": "AU", // Optional for INR-P3 "customerPhone": "1234567890" // Must be a 10 digits number. Optional for INR-P3 } ``` {% hint style="warning" %} If you get a bad request response without exact information about the erroneous field, please check the syntax of the request. {% endhint %}
INR UPI Intent deposits {% hint style="danger" %} NOTE: Intents method is not currently available on [Demo Environment](https://docs.xgateway.tech/miscellaneous/environments) due to specifics of the APM. {% endhint %} Create an invoice: ``` { "paymentMethod": "intent", "orderId": "order-test-prod", "customerId": "test-prod2025", "baseCurrency": "INR", "amount": 1000 } ``` Create and activate an invoice for INR **(opens the payment method directly)**: ``` { "paymentMethod": "intent", "orderId": "order-test-prod", "customerId": "test-prod2025", "baseCurrency": "INR", "amount": 1000, "customerFirstName": "John", "customerLastName": "Doe", "paymentCurrency": "INR", "customerEmail": "john.doe@gmail.com", "customerCountry": "AU", // Optional for INR-P3 "customerPhone": "1234567890" // Must be a 10 digits number. Optional for INR-P3 } ``` {% hint style="warning" %} If you get a bad request response without exact information about the erroneous field, please check the syntax of the request. {% endhint %}
AZN deposit example ``` { "amount": 150, "baseCurrency": "AZN", "displayCurrencies": "AZN", "customerId": "test-customer-id", "orderId": "test-order-id" } ```
Curl example ```json curl -X POST https://api.demo.xgateway.tech/api/v2/invoices \ -H "x-api-key: 31adcf55-8dea-41b0-b2eb-4b32f0966c6b" \ -H "Content-Type: application/json" \ -H "Accept: */*" \ -d '{ "customerId": "test-try-customer", "orderId": "test-try-order", "baseCurrency": "TRY", "amount": 1000, "paymentMethod": "papara", "paymentCurrency": "TRY", "customerFullName": "John Doe" }' ``` {% hint style="warning" %} If you get a bad request response without exact information about the erroneous field, please check the syntax of the request. {% endhint %}
The request returns a link to a correspondingly configured Checkout page. The Checkout page will request from a customer any data missed in the initial request and required to create an invoice. The Checkout page will eventually redirect the customer to the local payment system like Papara or UPI. Remember to authorise the request with your key using `x-api-key` header. The default lifetime of an invoice is 15 minutes. ### iFrame or redirect The URL returned by the invoice creation API can be used in two ways: as a redirect or within an iFrame. In case of a redirect, the user is sent to a new page where they complete the payment. This can be done using a new tab too. A redirect is an option with less effort.\ When the deposit is done, the user is redirected back to your app: either to the dynamic URL specified in the redirectUrl [parameter](https://docs.xgateway.tech/advanced-features-of-invoice-creation#the-invoice-creation-api) or to a pre-set static URL. The invoice URL may also be used in an iFrame. Please check [this](https://docs.xgateway.tech/miscellaneous/iframe-setup) page for detailed instructions on the iFrame setup. {% hint style="danger" %} Our local partners for Alternative Payment Methods may block customers using VPN. It is a general recommendation to warn customers that a payment method can not be accessed through a VPN. {% endhint %} ### Limits The invoice creation API validates the amount value. The minimum and maximum amount values may differ based on the payment provider used for this exact invoice. Use the following validation as a safe measure. Contact the support team if your currency is not listed or you want to confirm the limits. {% hint style="danger" %} An invoice will not be created, if the amount exceeds the limits. {% endhint %}
Invoice limits | Currency | Min value | Max value | | ---------- | ---------------------------------------------------------------------- | --------- | | INR |

300
(500 on Sandbox and for exceptional cases in production)

| 49000 | | TRY Papara | 1000 | 10000 | | TRY Havel | 100 | 500000 | | PKR | 500 | 1000000 |
### Processing a callback When a customer makes a deposit, XGateway detects the transaction and sends a deposit callback to the merchant. Below is an example of such a callback. For detailed information, please visit[ this page](https://docs.xgateway.tech/miscellaneous/how-to-process-the-callback/transaction-callback-for-deposit-and-withdraw).
Callback example ```json { "callbackType":"transaction", "amount":"200", "applicationId":null, "currency":"TRY", "customerId":"000394", "hash":"...", "id":"7e71d132-d80d-4140-8e60-9c89d0bd9eed", "invoiceId":"184e9933-1526-...-fe567091b5bd", "network":null, "orderId":null, "status":"confirmed", "transactionHash":null, "type":"deposit", "info":{ "exchangeRate":"1.03759", "referenceAmount":"207.52", "referenceCurrency":"USD", "referenceExchangeRate":"1.000065", "transactionAmount":"207.51518", "transactionCurrency":"tUSDT" }, "fees":{ "processing":"7.263031", "technical":null }, "eur":"200.12", "usd":"207.52" } ```
{% hint style="warning" %} Callbacks for Withdraw requests will be sent to the same URL. Make sure to properly filter callbacks by type. {% endhint %} ### Confirming a transaction {% hint style="danger" %} Due to security risks, merchants *must* use our [API endpoint](https://docs.xgateway.tech/miscellaneous/deposit-data-confirmation) to request transaction details. XGateway is not liable for issues caused by relying only on callback data. {% endhint %} To confirm the callback is valid, please use the [API endpoint](https://docs.xgateway.tech/miscellaneous/deposit-data-confirmation). ### Testing Alternative Payment Methods deposits on Demo environment You can test deposits in the[ Demo Environment](https://docs.xgateway.tech/miscellaneous/environments). Some (not all) of the APMs provide simulation capability directly in the UI of the sandbox environment.

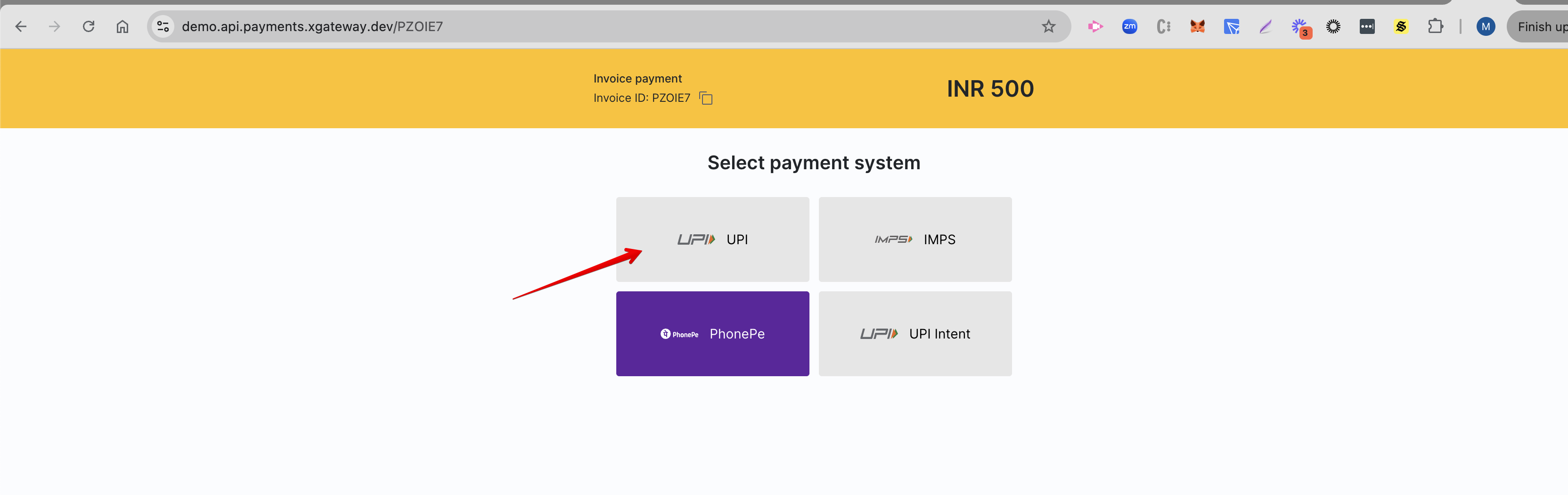

INR testing flow on Demo environment Open the invoice link. Select the UPI provider.

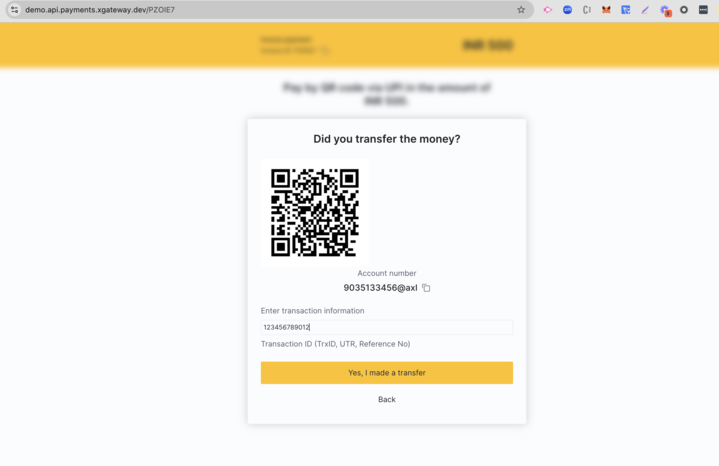

Proceed up untill the form with a request of transaction information. Input any 12 digits

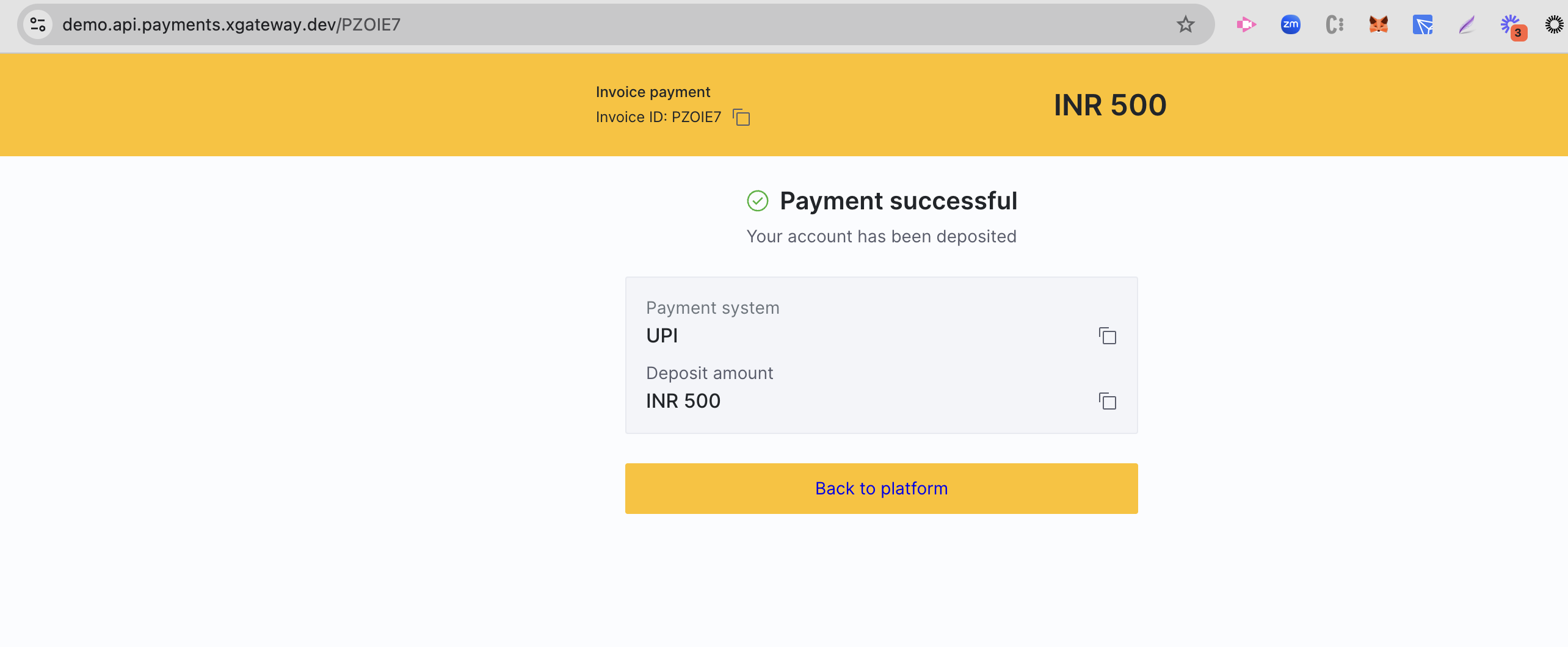

Send the data. Wait till the system "confirms" the payment.
For the time being no sandbox is available for TRY. The Demo environment is connected to a separate Papara production instance. Instead, try using the simulation API. #### Testing with transaction simulation The Demo Environment provides an [API](https://docs.xgateway.tech/miscellaneous/deposit-and-withdrawal-simulation) to simulate a deposit from any supported APM.
